Description
Antec PCI-E 4.0 Riser Cable with Bracket is designed to allow vertical mounting of a Graphics Card with a Compatible PC Case
Functionality

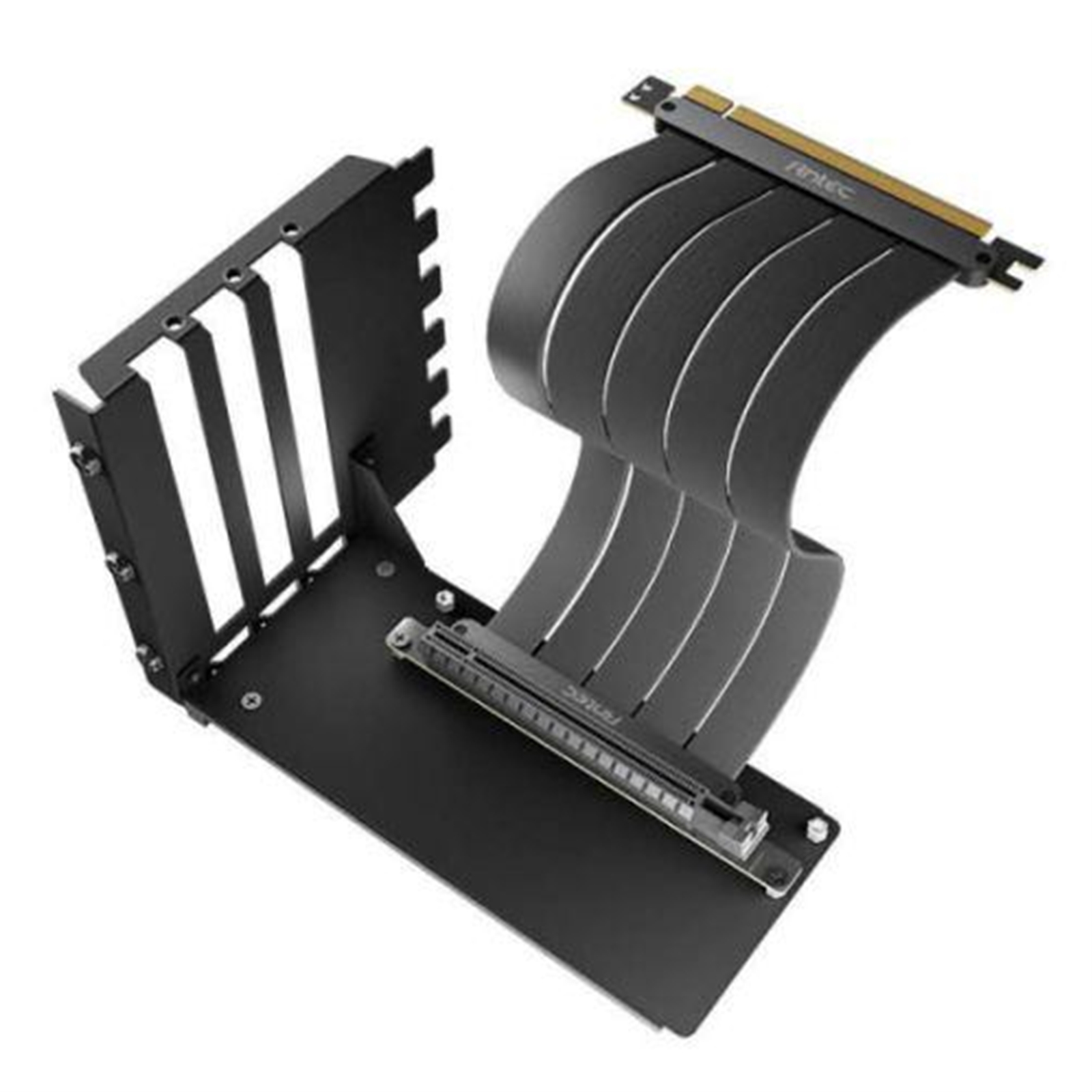

This product includes a 200mm PCIe 4.0 x16 riser cable and a vertical GPU mounting bracket, enabling users to vertically showcase their graphics card.
Performance
It supports PCIe 4.0 speeds, offering high signal integrity and performance with no FPS loss compared to direct motherboard connection, ideal for modern GPUs like the NVIDIA GeForce RTX 30 Series and AMD Radeon RX 6000 Series.
Design
The cable features a high-quality shielded PCB with gold-plated connectors for stable transmission, and ultra-flexible sleeves for easy routing and installation. The included bracket is made of aluminium.
Compatibility
The bracket is compatible with standard ATX cases that have full-break PCIe expansion slots (no permanent bars between slots). The cable is 0.2 meters (200mm) long and has a 180° mount orientation.
Specifications
Cable Length
200mm (0.2m)
Interface
PCIe 4.0 x16 (backward compatible with PCIe 3.0/2.0/1.0)
Data Transfer Speed
Up to 16 Gbps, 2X faster than PCIe 3.0
Connector Type
Gold-plated PCIe x16 Male-to-Female connectors
Bracket Material
Aluminium
Cable Design
Ultra-flexible sectional design cable with shielded PCB for stable signal transmission and minimal FPS loss
Mount Orientation
180° mount orientation for the graphics card
Case Compatibility
Compatible with standard ATX cases that have full-break PCIe expansion slots (no permanent bars between slots)
Graphics Card Compatibility
Compatible with NVIDIA GeForce RTX 30 Series and RTX 40 Series, and AMD Radeon RX 6000 Series and RX 7000 Series graphics cards
Package Contents
1 x PCIe 4.0 Riser Cable (200mm), 1 x VGA Vertical Bracket, 1 x Screw Bag
Colour
Black
