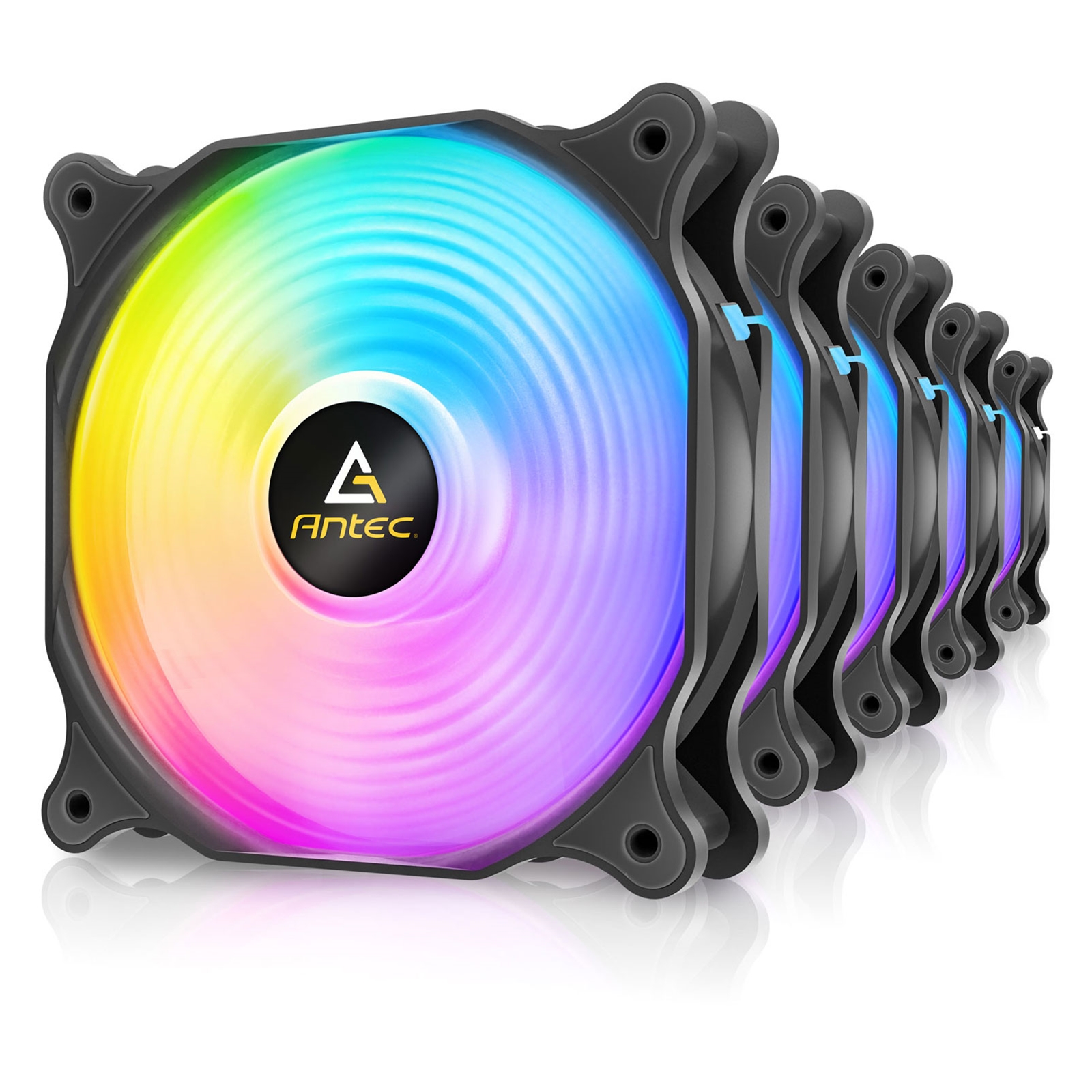

F12 RACING ARGB 120mm PWM Case Fan 3PK With ARGB & PWM Controller
Enhanced Visual Appeal
Under operation, the F12 Racing ARGB exhibits a concentric circular lighting effect, enhancing the overall visual appeal with its sleek and layered illumination.
Bright ARGB
Full-spectrum ARGB lighting, to meet the individual needs of most players, and you can enjoy a distinctive vision after powering on.
Superior Heat Dissipation
The seven semi-transparent fan blades feature three-dimensional grooves, achieving superior cooling performance.
Hydraulic Bearing Fan
Durable hydraulic bearing with a lifespan of over 40,000 hours.
Quiet & Stable
Equipped with 8 rubber pads, which can greatly reduce operating noise and improve efficiency.
ARGB/PWM Controller
FAN: PWM Port (4pin)
LED: ARGB port (3pin)
DC-IN: SATA Power Connector
LED CTRL: External LED Connector (Connect to the reset button of the chassis to turn it into LED control)
LED SPEED: Control the speed of lighting effects (Low/Mid/High)
PWM LED: External Signal Connector (Connect to the Motherboard for ARGB & PWM functions)
MODE: Switch the lighting effects
Specifications
Model Name
F12 R ARGB
Fan Type
ARGB Fan
Dimensions
120 x 120 x 25 mm
Bearing Type
Hydro Bearing
Fan Speed
500 ± 200 – 1500 ± 10% RPM
Airflow
52.75 CFM (max.)
Air Pressure
1.76 mmH2O (max.)
Fan Noise Level
28 dB(A)
Lifespan
40,000 hrs 25°C
Connector
4-pin PWM | 3-pin ARGB
Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
FAN: DC6.0-13.8V | LED: DC4.5-5.3V
Rated Current
FAN: = 0.15 A | LED: = 0.288 A
Warranty
1 Year
