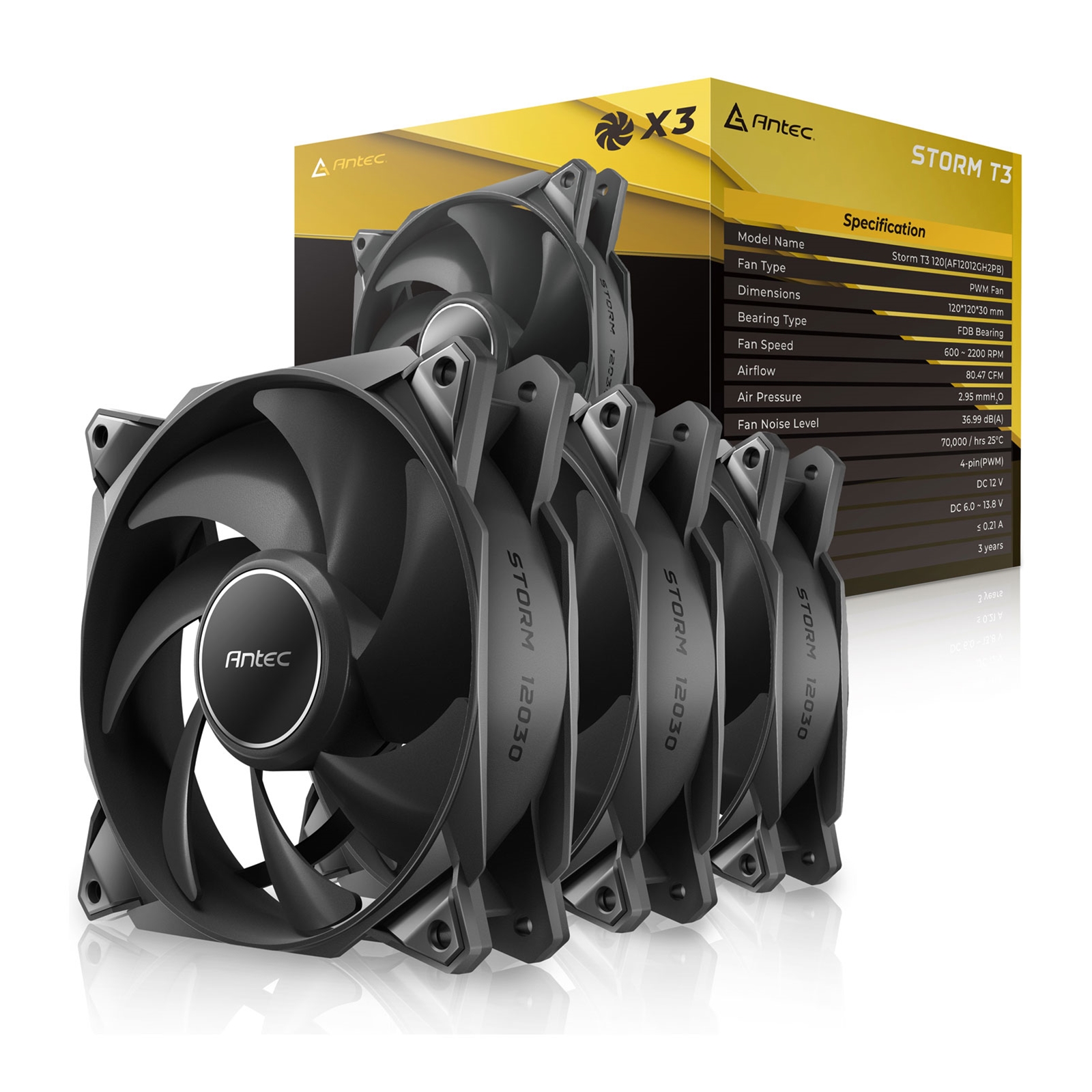

Antec Storm T3 120mm PWM Case Fan, 3 Pack, Fluid Dynamic Bearing, 600-2200 RPM, Black

Description

STORM T3 120 PWM Case Fan 3PK

Storm T3 with a Thickness of 30 mm and Thickened Fan Blades
Increased 25% thicker Fan Blade width for high air pressure and airflow performance, so as to minimize the resonance.
Increased the thickness by 30mm makes the contact surface wider and bigger air inlet area between the fan and the chassis, max 80.47 CFM

Air-Concentrating Design
The well-designed case frame and curves make the airflow stronger, reduce turbulent flow and fan noise and enhance the efficiency.

PWM Daisy-Chain Design
To avoid signal interference, fans are daisy-chained with 3-pin connectors. But the fans fully support the PWM function.

Fluid Dynamic Bearing Fan
The FDB bearing fan can extend durability and lifespan.

Vibration-Absorbing & Anti-Noise Pads
The 8 x 6mm rubber pads can efficiently reduce vibration and noise.

Specifications

Model Name
Storm T3 120 (AF12012GH2PB)

Fan Type
PWM Fan

Dimensions
120 x 120 x 30 mm

Bearing Type
FDB Bearing

Fan Speed
600~2200RPM ± 10%

Airflow
min 18.17~max 80.47 CFM

Air Pressure
min 0.25~max 2.95 mmH2O

Fan Noise Level
36.99 dB(A)

Lifespan
70,000 hrs 25°C

Connector
4-pin PWM

Rated Voltage
DC 12 V

Operation Voltage
DC 6.0-13.8 V

Rated Current
= 0.21A

Warranty
3 Years
