Description

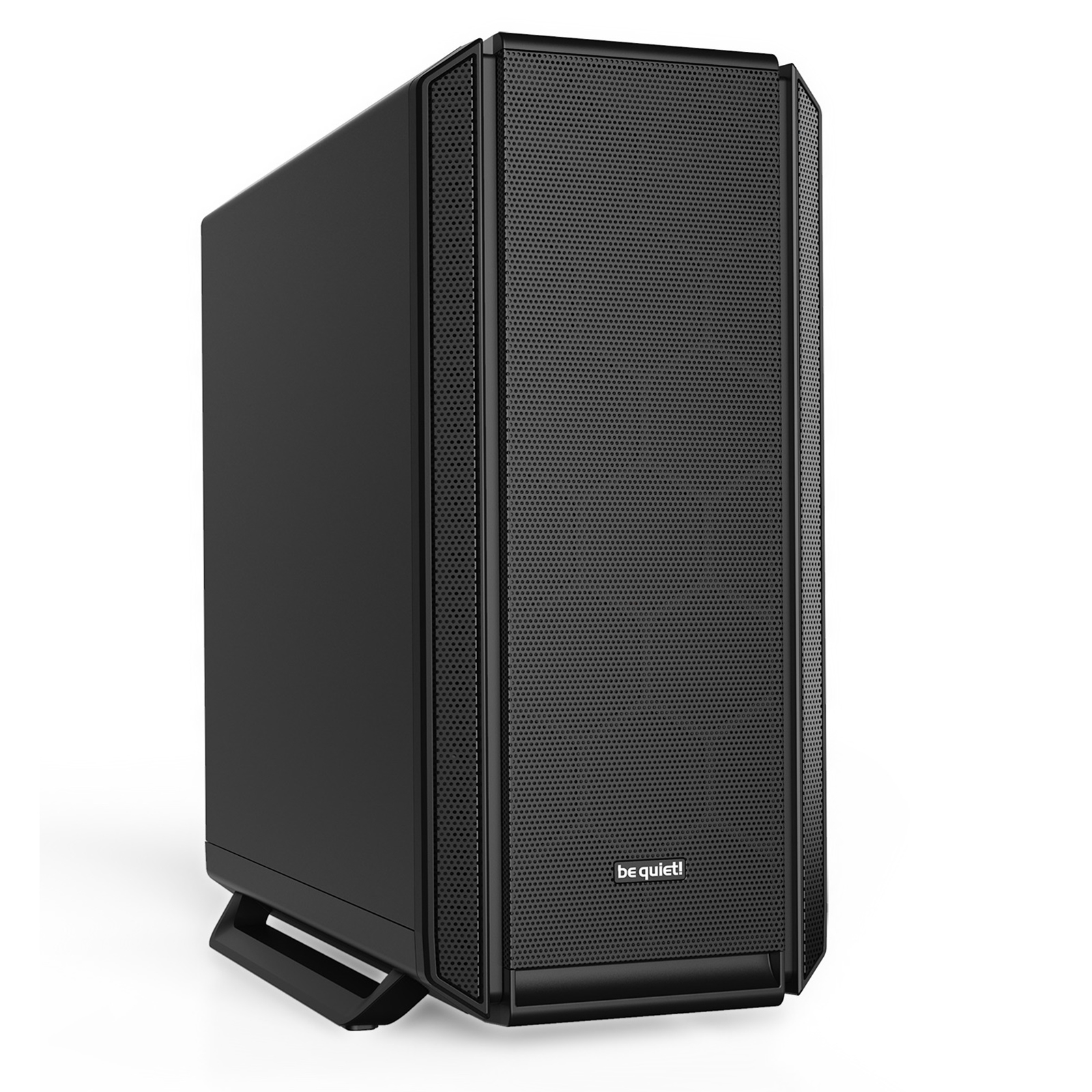

SILENT BASE 802 – Black
EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE
The be quiet! Silent Base 802 Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.
– Interchangeable top cover and front panel for either maximum airflow or silent operation
– 3 Pure Wings 2 140mm fans
– Extra thick insulation mats for improved noise reduction
– State-of-the-art I/O-panel with fan controller and USB 3.2 Gen. 2 Type C
– Decoupled motherboard tray can be relocated for an inverted layout
– Detachable top bracket ensures easy installation of radiators and fans
– Ready for radiators up to 420mm
INTERCHANGEABLE TOP COVER
Optimized for air or water cooling
The first of 2 included top covers perfectly rounds off the design of the Silent Base 802 Black and ensures a silent operation. For all who strive for extremely powerful cooling and especially with water-cooled systems, the highly air-permeable top cover is the right choice.
INTERCHANGEABLE FRONT PANEL
Ensures maximum performance or whisper-quiet operation
The airflow front panel provides maximum performance for sophisticated configurations with highest demands for low temperatures. The standard front panel is the perfect choice for silent systems and regular PC configurations. Both panels are included.
THREE PREINSTALLED PURE WINGS 2
Whisper-quiet operation
3 preinstalled Pure Wings 2 140mm fans with airflow-optimized fan blades ensure perfect airflow and solid cooling no matter if you chose a high airflow or a silence optimized configuration.
SUPERB NOISE DAMPENING
Extra thick insulation for maximum stability and silence
The front and sides are equipped with extra thick dampening mats of up to 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket, motherboard tray and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.
SMART I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of the latest hardware. The integrated 4-step fan controller allows the setting of the speed of up to 6 fans manually or connect all to one PWM signal.
VERSATILE MOTHERBOARD TRAY
Designed to fit individual requirements
The motherboard tray is decoupled and can be installed alongside the left panel in an inverted layout. It is also removable for use as a test bench.
FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm or 420mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.
General Data
Model: Silent Base 802 Black
Color option: Black
Motherboard compatibility: E-ATX (30.5 x 27.5cm) / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm): 539 x 245 x 537
Case size incl. stands (L x W x H), (mm): 539 x 281 x 553
PSU form factor: ATX PS/2
Weight (kg): 12.59
Expansion slots: 7 + 2
Pre-Installed Fans
Fan @ top: –
Fan @ front: 2x Pure Wings 2 140mm
Fan @ rear: 1x Pure Wings 2 140mm
Dimensions (L x W x H), (mm): Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed @ 100% PWM / 12V (rpm): 1000
Airflow @ 100% PWM / 12V (CFM / m3/h): 61.2 / 104
Air Pressure @ 100% PWM / 12V (mm H2O): 0.76
Noise level @ 100% PWM / 12V (dB(A)): 18.8
Voltage range (V DC): 5 – 12
Input power (W): 1.44
Input current (A): 0.12
Connector: 3-pin
Lifespan (h / 25°C): 80,000
Fan controller: 4-step fan controller (6x 3-pin) with PWM Hub
Maximum Fan Installation
Top (mm): 3x 120 / 3x 140
Front (mm): 3x 120 / 3x 140
Rear (mm): 1x 140
Bottom (mm): –
Side panel (mm): –
PSU shroud: 1x 120 / 1x 140
Optional Radiator Installation
Top (mm): 120 / 240 / 360
Front (mm): 120 / 140 / 240 / 280 / 360 / 420
Rear (mm): 120 / 140
Bottom (mm): –
PSU Compatibility
Maximum dimensions excl. bottom fan (mm): 288
Maximum dimensions incl. bottom fan (mm): 288
Graphics Card
HDD cage (in height of graphics card) installed (mm): 287
HDD cage (in height of graphics card) removed (mm): 432
Drive Bay Capacity
5.25 bays: –
3.5 slots (max.): 7
3.5 slots (scope of delivery): 3
2.5 slots (max.): 15
2.5 slots (scope of delivery): 7
Cooling
Max.construction height of CPU cooler unit (mm): 185
Airflow channel: Front / Top / Rear
