Description

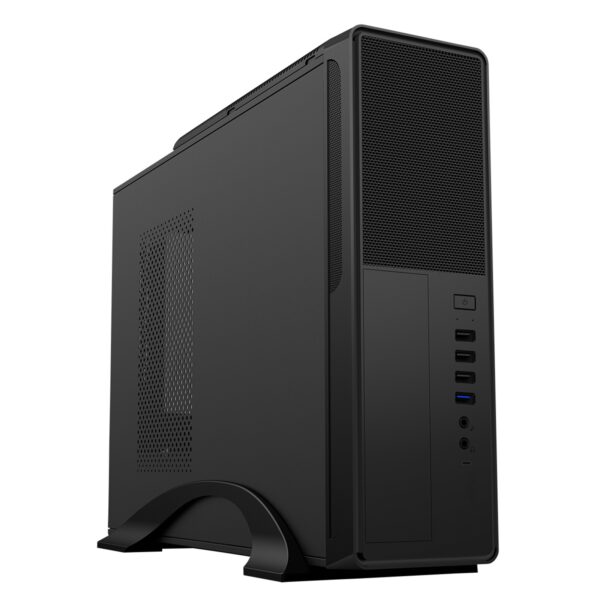

CiT S014C micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014C front panel offers modern connectivity including USB 3.0 Type-C support. An 8cm fan is included at the top for effective airflow, and the S014C also comes with a silent micro SFX 300W PSU, helping to provide reliable performance for a business or home PC system.
Comes with 300W Micro ATX PSU
Comes with a 1 x 8cm Top Cooling Fan
Removeable HDD/ODD cage for help when assembling your PC
Slim compact design to save desk space
Front I/O includes USB 3.0 Type-C
PSU Specification
Rail: Max. DC Output
+3.3V: 16A
+5V: 16A
+12V: 14A
-12V: 0.3A
+5VSB: 2A
Connections
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1
Form Factor
Micro Tower
Motherboard Support
Micro ATX
Mini-ITX
PSU Included
Yes
PSU Support
Micro ATX
PSU Location
Front
Body Material
0.5mm SECC Metal
Front Bezel Material
Plastic
Side Panel
Vented
Drive Bays
1 x 5.25 External
2 x 3.5 Internal
2 x 2.5 Internal
(1 x 2.5 uses a 3.5 bay)
Expansion Slots
4 x Half-Height
Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD
I/O Ports
1 x USB 3.0 Type-A
1 x USB 3.0 Type-C
3 x USB 2.0
1 x HD Audio (Also Supports AC’97)
1 x Microphone
Clearance
Internal Cable Management Depth: 21mm
GPU Card Max Length: 225mm
CPU Cooler Max Height: 82mm
Front Bezel Colour
Black
Body Colour
Black
Product Dimensions ( W x H x D )
100 x 306 x 403mm
