Description

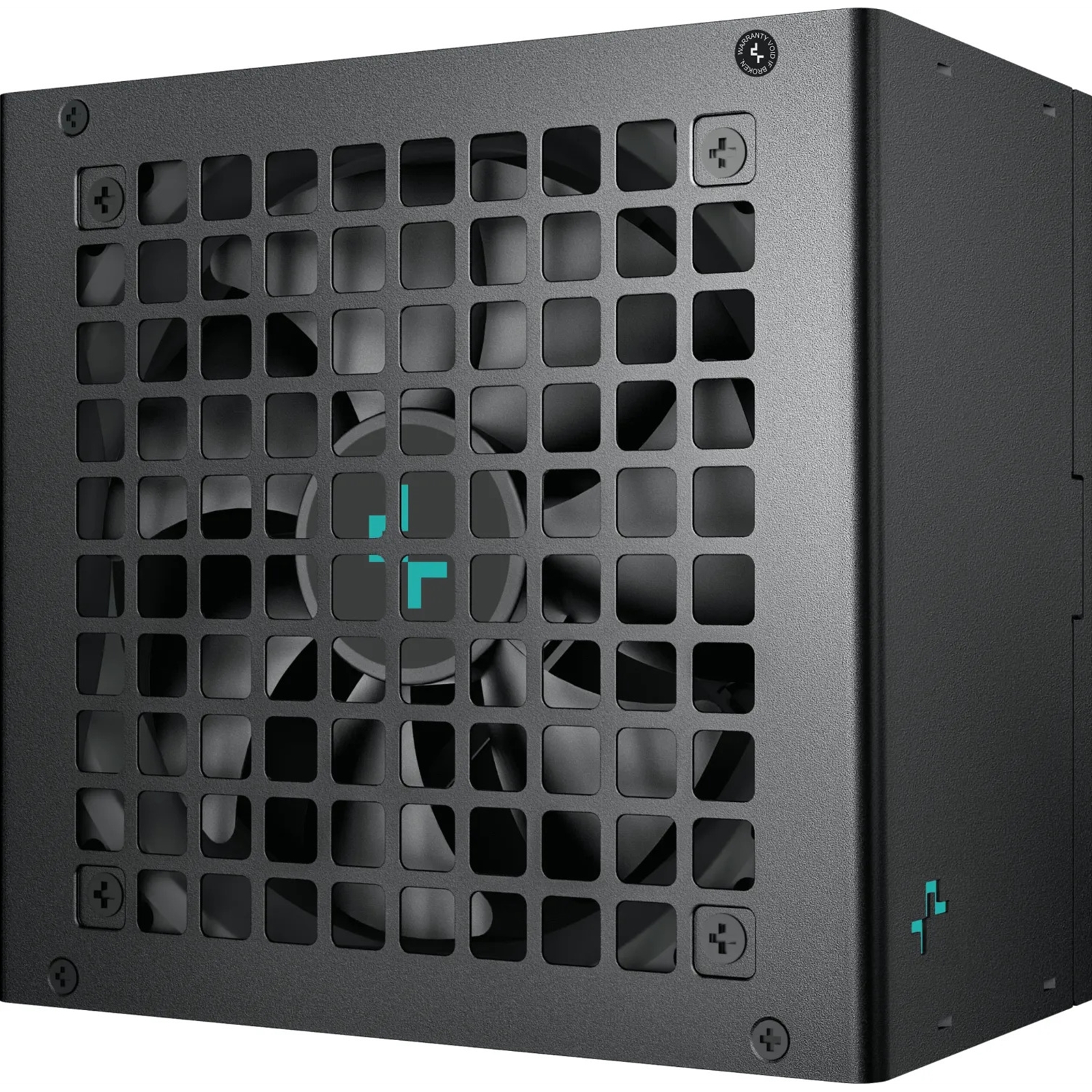

The DeepCool PL650D 80 Plus Bronze Power Supply is engineered to perfection, delivering stable and reliable power for mid-range to high-performance desktop systems. This power supply unit (PSU) is designed in compliance with INTEL’s ATX3.1 standard and features a native PCIe 5.0 power connector. With its streamline hydro-bearing fan and 80 Plus Bronze certification, the PL650D ensures optimal cooling, quiet operation, and high energy efficiency. Built with high-grade electrolytic capacitors and a well-thought-out dual-transistor forward topology, it guarantees top-notch durability and performance for years to come.
Full Specification
Model:
PL650D
Colour:
Black
Power Capacity:
650W
Dimensions:
150x140x86mm (WxLxH)
Weight:
1.75kg (3.86lb)
Material:
High-quality parts including electrolytic capacitors
Efficiency Certification:
80Plus Bronze (=85% efficiency under typical loads at 50% loading)
Cooling:
120mm hydro-bearing fan
Modular Design:
Non-modular
Connectors:
Main Power Connector: (20+4)Pin x 1
CPU: (4+4)Pin x 2
PCI-E: (6+2)Pin x 3
Sata: x3
4Pin Peripheral: x1
12VHPWR (16Pin): x1
Certifications and Safety Features:
OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO
Type:
ATX12V V3.1
Fan Bearing:
HYB (Hydro Bearing)
Topology:
Active PFC + DC to DC
Power Good Signal:
100-150ms
Hold Up Time:
=16ms at Full Load
Operating Temperature:
0 – 40 °C
Compliance:
ATX v3.1, EPS 2.92
Warranty:
5 years
