Description

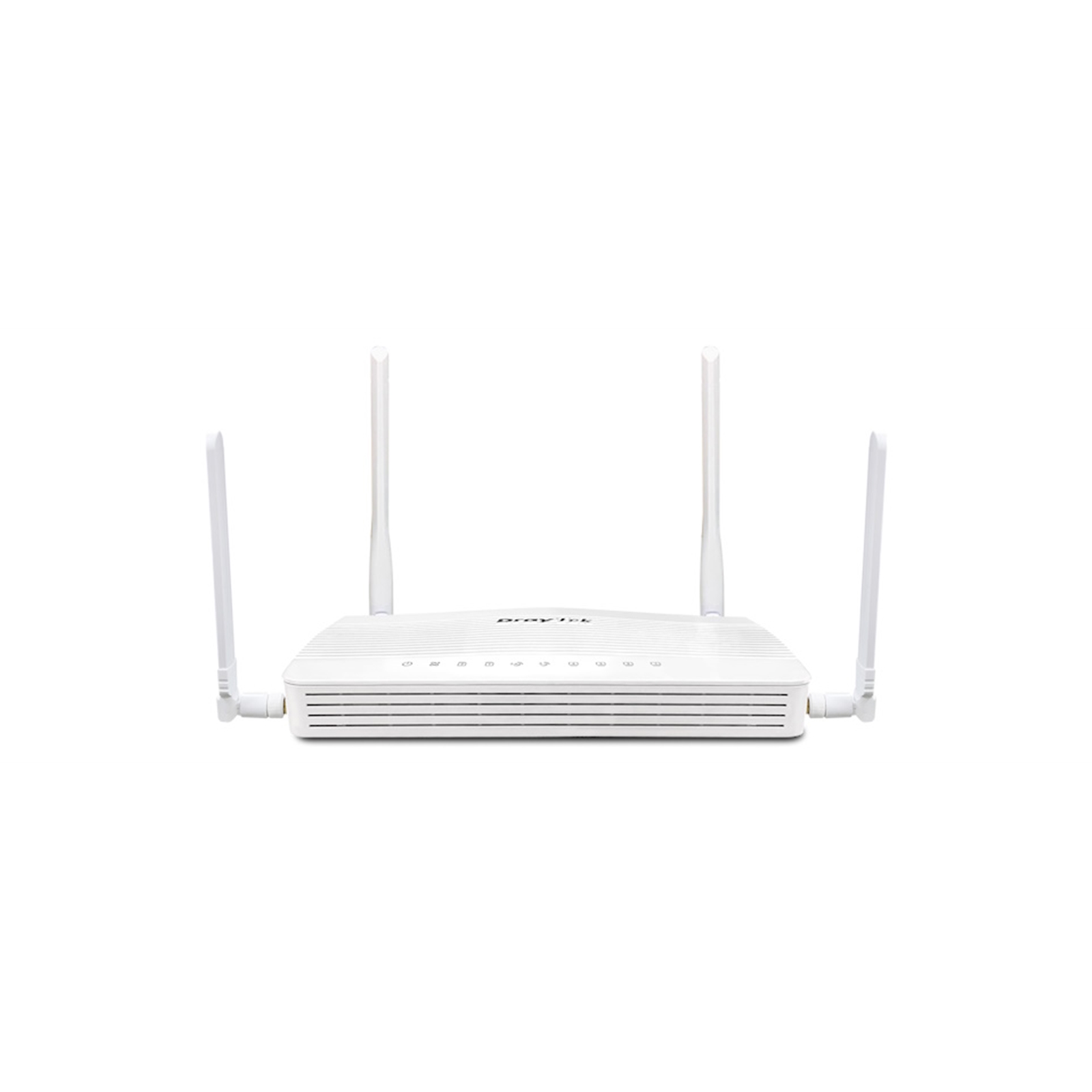

The Ideal Branch-Office 5G Networking Gateway. The DrayTek Vigor C510ax is a low-cost firewall VPN router with the 5G/4G mobile Internet connection method. In addition, it can use any one of the three methods for its primary WAN (Internet) connectivity, falling back to one of the others in case of service interruption. It as a Dual-SIM cellular 5G/4G modem, Ethernet (RJ45 – which can connect to many other WAN delivery sources), and wireless WAN (ax models can fall back to a wireless hotspot such as phone’s tethering, a web café, someone else’s office etc.). The Wi-Fi 6 module can provide Internet access and support local wireless LAN at he same time. The Vigor C510ax routers also offer extensive Firewall features, Content Filtering, VPN client/server and Quality of Service controls. The latest DrayTek DrayOS 5 system enhance security-focused capabilities of the router.
Key Features
Multi-WAN Router with Failover
5G / 4G built-in modem with dual SIM slot for second backup telco
1x Gigabit Ethernet WAN (RJ45)
1x Gigabit Ethernet WAN (RJ45) / LAN switchable
3x Gigabit RJ-45 LAN Ports
Wireless WAN backup (ax models)
Up to 940Mbps Firewall Throughput
Up to 370Mbps IPsec VPN Throughput
4x LAN-to-LAN & Remote Teleworker VPN Tunnels
AX3000 – Wi-Fi 6 Dual Band Wireless
4 LAN Subnets with VLANs (Port-based / 802.1q)
SPI Firewall and Content Filtering
Optional VigorCare Available
Compatible with VigorACS central management platform
Technical Specification (UK Hardware Spec.)
Physical Interfaces
WAN Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45 WAN/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45 LAN Ports: 3x Gigabit Ethernet (1G/100M/10M), RJ-45
2x Removable Wireless LAN antennas
2x Removable 5G Cellular antennas
Wireless On / Off / WPS button
Recessed Factory Reset button
SIM Slot: 2x Nano-SIM (1 Active SIM)
Performance
NAT Performance:
Up to 940 Mb/s NAT Throughput
50,000 NAT Sessions
VPN Performance:
370 Mb/s IPsec VPN Performance
Max. 4 Concurrent VPN Tunnels
WAN Interfaces
WAN1: Gigabit Ethernet
WAN2: Gigabit Ethernet (LAN switchable)
WAN3: 2.4GHz Wireless WAN
WAN4: 5GHz Wireless WAN
WAN5: Integrated 5G/4G Modem
Internet Connection
Hardware Acceleration (Always On)
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
2.4GHz or 5GHz Wireless WAN
WAN Active on Demand: Link Failure, Traffic Threshold
Connection Detection: ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
IPv4 Connection Types: PPPoE, DHCP, Static IP
IPv6 Connection Types:
Ethernet: PPP, DHCPv6, Static IPv6, TSPC, 6rd, 6in4 Static Tunnel
Wireless Features
AX3000 Wi-Fi 6 Wireless:
802.11ax 2×2 wireless access point
Compatible with 802.11a/b/g/n/ac wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 2402Mbps PHY rate at 160MHz with 5GHz
Up to 574Mbps PHY rate at 40MHz with 2.4GHz
Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80/160MHz for 5GHz
OFDMA
MU-MIMO
Tx Beamforming
1024-QAM
Mesh Root support with DrayTek VigorAP Mesh Nodes
Up to 8 SSIDs per radio band
Extended 5Ghz Band – Channels 36-48, 52-64, 100-140
Wireless Optimisation: Assisted Client Roaming, Band Steering
WMM (Wireless MultiMedia)
WPS – WiFi Protected Setup
Wireless Security
OWE
WEP
WPA
WPA2/WPA
WPA3
Pre-Shared Key authentication
Enterprise 802.1x authentication
Identity Access Policies (MAC address, Login, Guest Hotspot)
Antenna Specifications
Wireless LAN Antennas:
2x External Dipole
5GHz Gain: 2.8 dBi
2.4GHz Gain: 2.1 dBi
RP-SMA fitting antenna connectors
5G/4G Cellular Antennas:
2x External Dipole
2x Internal PIFA
Gain: 4 dBi
SMA fitting antenna connectors
Integrated 5G Modem Features
Dual-SIM Failover
5G Modem / LTE Category 19 Modem
Unlocked to any network (EE, 3, O2, Vodafone, Eircom)
5G Max Data Rates:
Please note that the maximum real-world throughput speed is estimated to be approximately 600Mbps. Below are the theoretical maximum data link rates for 5G New Radio Standalone (NR SA) and 5G New Radio Non-standalone (NR NSA) for the device.
5G NR SA
2.4Gbps Downlink
900Mbps Uplink
5G NR NSA
3.4Gbps Downlink
550Mbps Uplink
5G NR Sub-6 SA Bands: 1, 3, 7, 8, 20, 28, 38, 40, 77, 78
5G NR Sub-6 NSA Bands: 1, 3, 7, 8, 20, 28, 38, 40, 77, 78
4G LTE (FDD) Bands: 1, 3, 7, 8, 20, 28
4G LTE (TDD) Bands: 38, 40
3G (WCDMA) Bands: 1, 8
2x Internal 4G/5G PIFA Antennas
2x External 4G/5G Antennas included
Per-SIM-Card WAN Data Budget
2x Nano-Size SIM
