Description

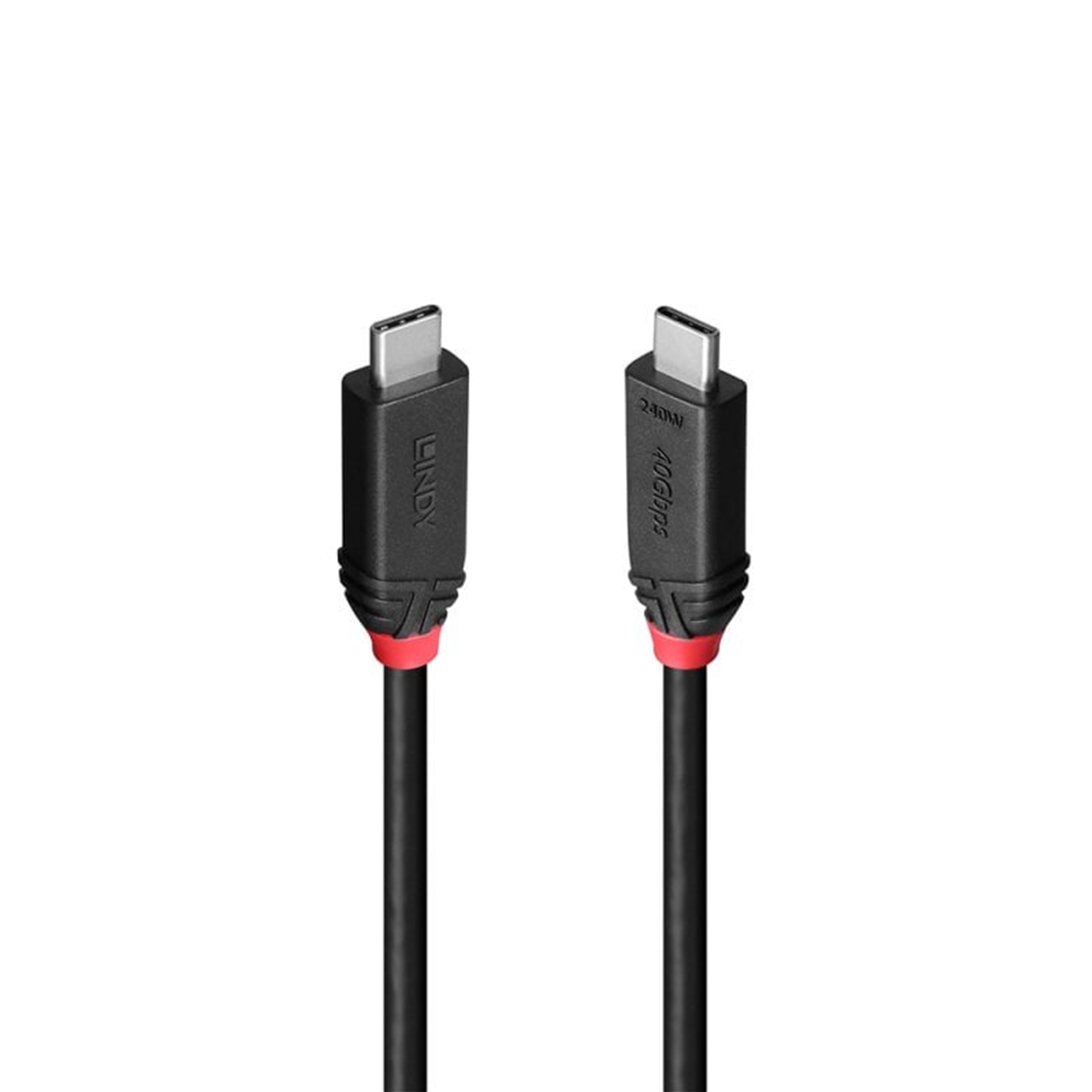

The Black Line USB4 Type C to C cables from Lindy’s Cable Lines concept are entry level connection solutions, perfect for home and small office use.
Black Line USB4 Type C to C cables feature triple shielded construction with copper conductors for premium performance and corrosion resistance. Nickel plated connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Key Features
Entry level USB4 Gen 3×2 Type C to C cable for home and small office applications
Supports data transfer speeds up to 40Gbps (backwards compatible to USB 3.2 , USB 2.0 and Thunderbolt 3)
Supports USB Power Delivery up to 240 Watt and DisplayPort 2.0 Alternate Mode with single 8K or dual 4K@60Hz
Triple shielded cable, gold plated contacts and nickel plated connectors
2 year warranty
Connectors
Connector A: USB Type 4 C Male
Connector B: USB Type 4 C Male
Housing Material: PVC
Shielding in head shell: –
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) W x D x H: 34.8×12.7×7.4mm (1.37×0.5×0.29in)
Cable Construction
Length: 2m (6.56ft)
Standard: USB4 Gen 3×2
Power Delivery: PD 3.1
Max. Power: 240W (48V 5A, Extended Power Range), 100W (20V 5A, Standard Power Range)
Colour: Black
Type: Round
Jacket Diameter: 4.8mm (0.19in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge Power: 24AWG
Conductor Gauge Data: 32AWG
Shielding: Aluminium Foil + 60% Braiding
Specifications
Supported Bandwidth: 40Gbps
Maximum Resolution: 3840×2160@60Hz, 7680×4320@60Hz
Nominal Attenuation: -12. 2dB@5G, -18.3dB@10G
Minimum Bend Radius: 20mm (0.79in)
Operating Temperature: 0°C – 40°C (32°F – 104°F)
Storage Temperature: -10°C – 60°C (14°F – 140°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 2
Product Compliance: RoHS, REACH, California Proposition 65
