Description

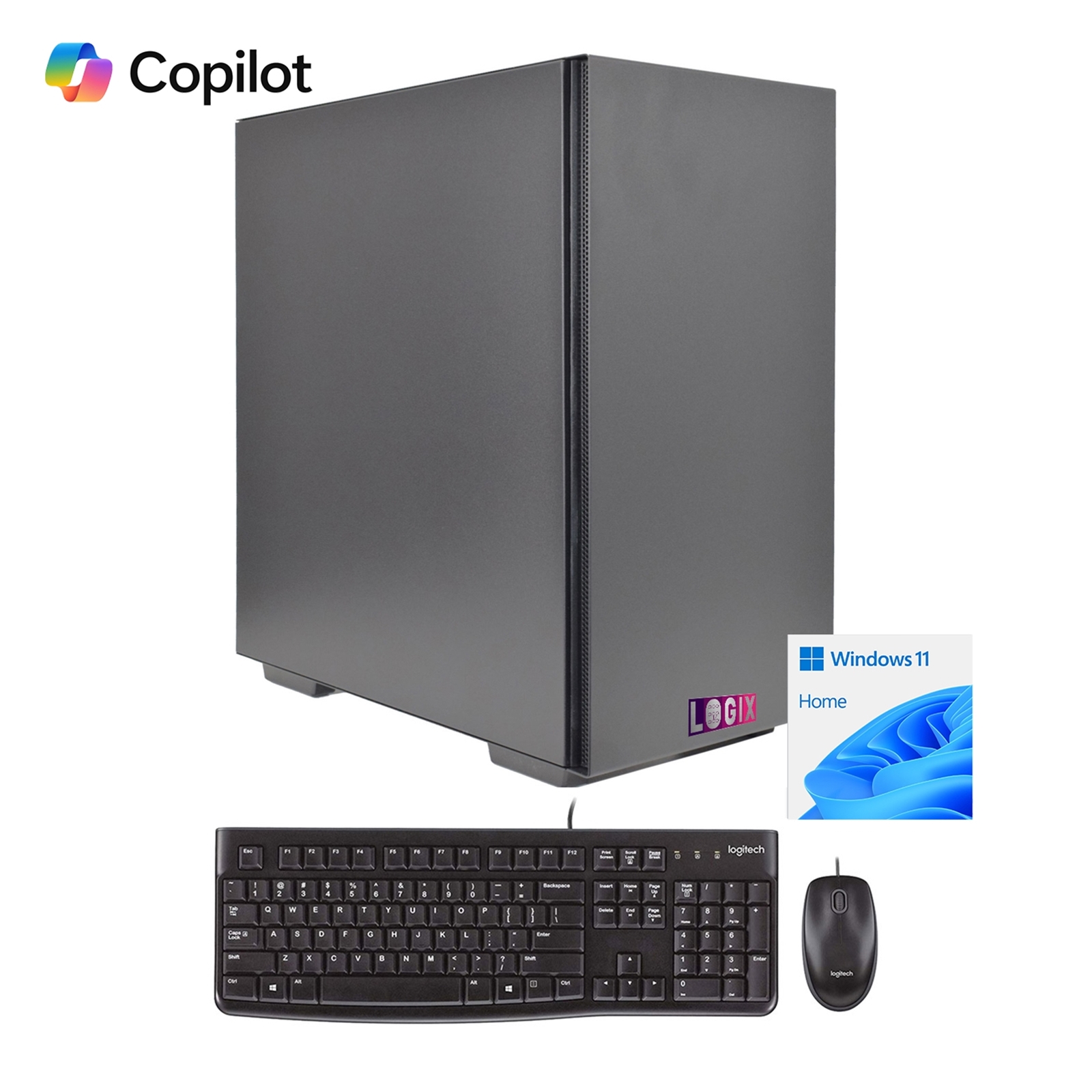

From homework to entertainment and everything in between, the LOGIX Family PC is your household’s go-to machine — powerful, practical, and ready to go right out of the box.
Built for Homework, Streaming, and Everyday Life
The LOGIX Family PC is a powerful and great-value desktop built for every member of the household. Whether it’s homework, online learning, streaming your favourite shows, browsing the web, or keeping in touch with loved ones, this PC handles it all — quickly, quietly, and reliably.
Ready for Work, Play & Everything in Between
Powered by a 14th Gen Intel Core i3 processor and 16GB of Kingston DDR4 RAM, this PC offers smooth multitasking for everything from schoolwork to after-hours work tasks. The 500GB Kingston NVMe SSD ensures fast start-up times and quick file access, so no one is left waiting.
Flexible, Fast & Family-Friendly
The compact DeepCool micro-ATX case fits neatly into any room, while Wi-Fi 6 and wired Ethernet options give you flexible placement without sacrificing internet speed. A Logitech keyboard and mouse are included, so it’s ready to go out of the box.
Built to Last, Backed by Warranty
Hand-built to high standards using trusted components, the LOGIX Family PC is designed to grow with your household’s needs — and it’s backed by a 3-year parts and collection warranty for complete peace of mind.
Key Features
Processor: 14th Gen Intel Core i3 – 4 cores, 8 threads, up to 4.70GHz
Memory: 16GB Kingston DDR4 (upgradeable)
Storage: 500GB Kingston PCIe 4.0 NVMe SSD
Connectivity: Wi-Fi 6 + Gigabit Ethernet
Case: Compact DeepCool micro-ATX, cool and quiet
Operating System: Windows 11 Home (preinstalled)
Included Accessories: Logitech MK120 keyboard + mouse
Warranty: 3-Year parts and collection warranty
Specification:
Operating System: Windows 11 Home
Processor: 14th Gen Intel Core i3-14100
Memory (RAM): Kingston Technology 16GB DDR4 (upgradeable to 64GB DDR4 – additional memory slot available)
Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 (maximum resolution 7680 x 4320 pixels @ 60Hz using DisplayPort, 4096 x 2160 @ 60Hz using HDMI)
Motherboard: Gigabyte H610M S2H V2
Case: Deep Cool Micro Tower
Connections:
Front –
2 x USB-A 3.0
3.5mm HD microphone & audio
Back:
2 x PS/2
1 x VGA
2 x DisplayPort
1 x HDMI
2 x USB-A 3.2 Gen 1
4 x USB-A 2.0
1 x RJ-45 Ethernet
3 x 3.5mm Audio
Networking:
Wired: Realtek 1Gbps GbE LAN
Wireless: TP-Link Archer AX1800 Dual Band Wi-Fi 6
Bluetooth: Version 5.2
Peripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse
Warranty: 3 years – parts and collection included (UK mainland only)
Processor
Intel Core i3 14100 4 Core Processor 8 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 12MB Cache, 60W, Maximum Turbo Power 110W, Intel UHD 730 Graphics
Processor Cores
4
Processor Threads
8
Core Clock Speed
3.50GHz
Core Boost Speed
4.70GHz
Memory
Kingston ValueRAM 16GB No Heatsink DDR4 3200MHz System Memory
Voltage: 1.20V
Latency Timing: CL22
Speed: 3200MHz (PC4-25600)
1 x 8GB DIMM Memory
Intel XMP Profile Support
Memory Configuration
2 x 8GB
2 Lanes (2 occupied)
SSD Drive
Kingston NV2 (SNV2S/500G) 500GB, NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 3500 MB/s, Write 2100 MB/s
Data storage life
160 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe
Format
Gen4 x4 NVMe
Max Read/Write Speeds
Read: Up to 3500MB/S
Write: Up to 2100MB/S
Hard Drive
No Additional Drive Fitted
Optical Drive
No Optical Drive Fitted
Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz
Graphics Card I/O
No Graphics Card Fitted. Uses Intel On-Chip Graphics
Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software – installed and up to Date
Card Reader
No Card Reader Fitted
Networking
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
TP-Link
