Description
Whether you’re building an AI-powered workstation, a CCTV monitoring hub, or simply need a reliable, high-performance PC for your home office, the LOGIX CCT-U733P is built to handle it all — quietly, efficiently, and securely.
Smart Power for Work, Security & Everyday Use
The LOGIX CCT-U733P is a powerful, desktop PC built for modern home offices, small businesses, and CCTV monitoring setups. Whether you’re managing multiple security feeds, working across several apps, or tapping into AI-powered tasks, this system is designed to keep up — quietly and efficiently.
Powered by Next-Gen Intel Core Ultra
Featuring the Intel Core Ultra 7 265K processor with 20 cores and 20 threads, this PC delivers ultra-responsive performance for multitasking and productivity. Its built-in AI NPU offloads background tasks like noise filtering and auto-framing, freeing up your CPU and GPU for smoother performance overall.
Built for Multi-Screen CCTV & Business Use
Equipped with an NVIDIA GeForce RTX 5060 graphics card, the CCT-U733P supports up to 4 monitors and 16 camera feeds in up to 8K resolution. Perfect for CCTV monitoring or high-resolution multi-screen work, it offers 1 HDMI and 3 DisplayPort outputs for flexible display setups.
Fast Storage & Clean Setup
A 1TB Kingston NVMe SSD ensures fast load times and quick access to your files. Preinstalled with Windows 11 Pro, fully updated and bloatware-free, the system is ready to go out of the box — no unnecessary software to slow you down.
Built in the UK, Backed by Warranty
Hand-assembled in the UK with trusted components, the CCT-U733P is backed by a 3-year parts and collection warranty for total peace of mind.
Key Features
Processor: Intel Core Ultra 7 265K (20 cores, up to 5.5GHz, built-in AI NPU)
Graphics: NVIDIA GeForce RTX 5060 (supports up to 4 monitors / 8K resolution)
Storage: 1TB Kingston NVMe SSD
Connectivity: Gigabit Ethernet
OS: Windows 11 Pro (preinstalled, bloatware-free)
Warranty: 3-Year parts and collection warranty
Specification:
Operating System: Windows 11 Pro
Processor: Intel Core Ultra 7 – 3.90GHz (5.50GHz boost) 20-cores & 20 threads
Memory (RAM): Kingston Technology 32GB DDR5 (upgradeable to 128GB DDR5 – additional memory slot available)
Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSD
Storage Expansion: 2 x 3.5/2.5 Combo & 2 x 2.5
Graphics: Gigabyte Nvidia GeForce RTX 5060 OC 8GB Graphics Card with 1 x HDMI 2.1 & 3 x DisplayPort 1.4 ports
Motherboard: B860 EAGLE WIFI6E

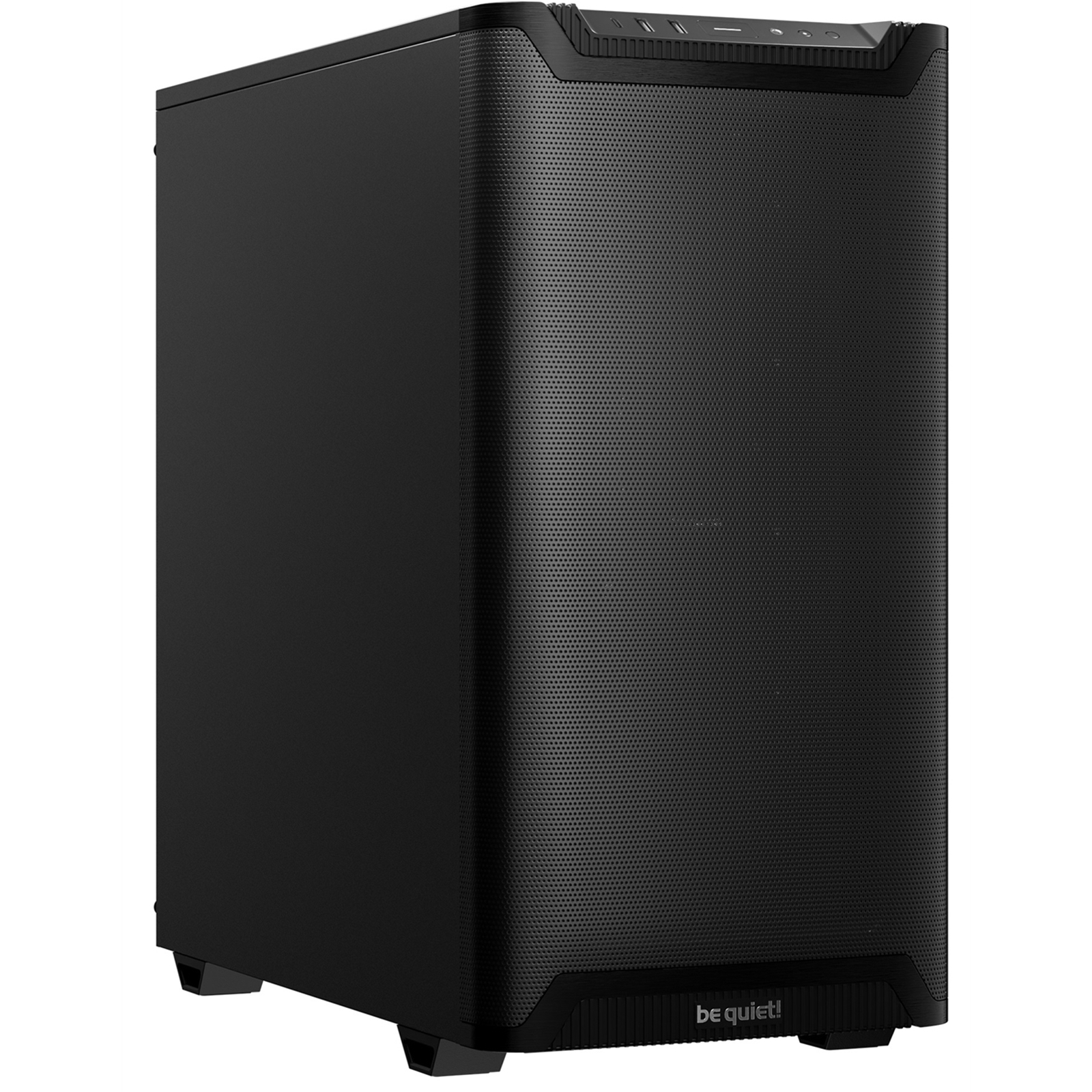

Case: Be Quiet 501 Pure Base
Connections:
Front –
2 x USB 3.0
1 x HD Mic/Audio
Back:
1 x PS/2 keyboard/mouse port
3 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports on the back panel
2 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks
Networking:
Wired:2 x 2.5Gbps GbE LAN
Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Warranty: 3 years – parts and collection included (UK mainland only)
Processor
Intel Core Ultra 7 265KF 20 Core, 20 Threads, 3.9GHz up to 5.5GHz Arrow Lake Processor LGA 1851, 36MB Cache, 125W, 250W Maximum Turbo Power
Processor Cores
20
Processor Threads
20
Core Clock Speed
3.90GHz
Core Boost Speed
5.50GHz
NPU Specifications
NPU Name: Intel AI Boost
NPU Peak TOPS (Int8) 13
Sparsity Support Yes
Windows Studio Effects Support Yes
AI Software Frameworks Supported by NPUOpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Security & Reliability
Intel Standard Manageability (ISM) : Yes
Intel Control-Flow Enforcement Technology : Yes
Intel AES New Instructions : Yes
Secure Key : Yes
Intel OS Guard : Yes
Intel Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel Virtualization Technology : Yes
Memory
Kingston KCP556UD8-32 32GB (1x 32GB) DIMM System Memory, 5600MHz, DDR5, CL46, Intel XMP
Voltage: 1.1V
Speed: 5600MT/s
1 x 32GB DIMM Memory
Intel XMP Profile Support
Memory Configuration
1 x 32GB
4 Lanes (1 occupied)
SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe S
