Description
Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management
Cloud access and Omada app for ultra convenience and easy management.
Two 10GE SFP+ Ports
1x WAN and 1x WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
Up to 10 WAN Ports
Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
Highly Secure VPN
Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / WireGuard / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
Abundant Security Features
Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.
Maximize the 10G Broadband with Omada Enterprise Gateway

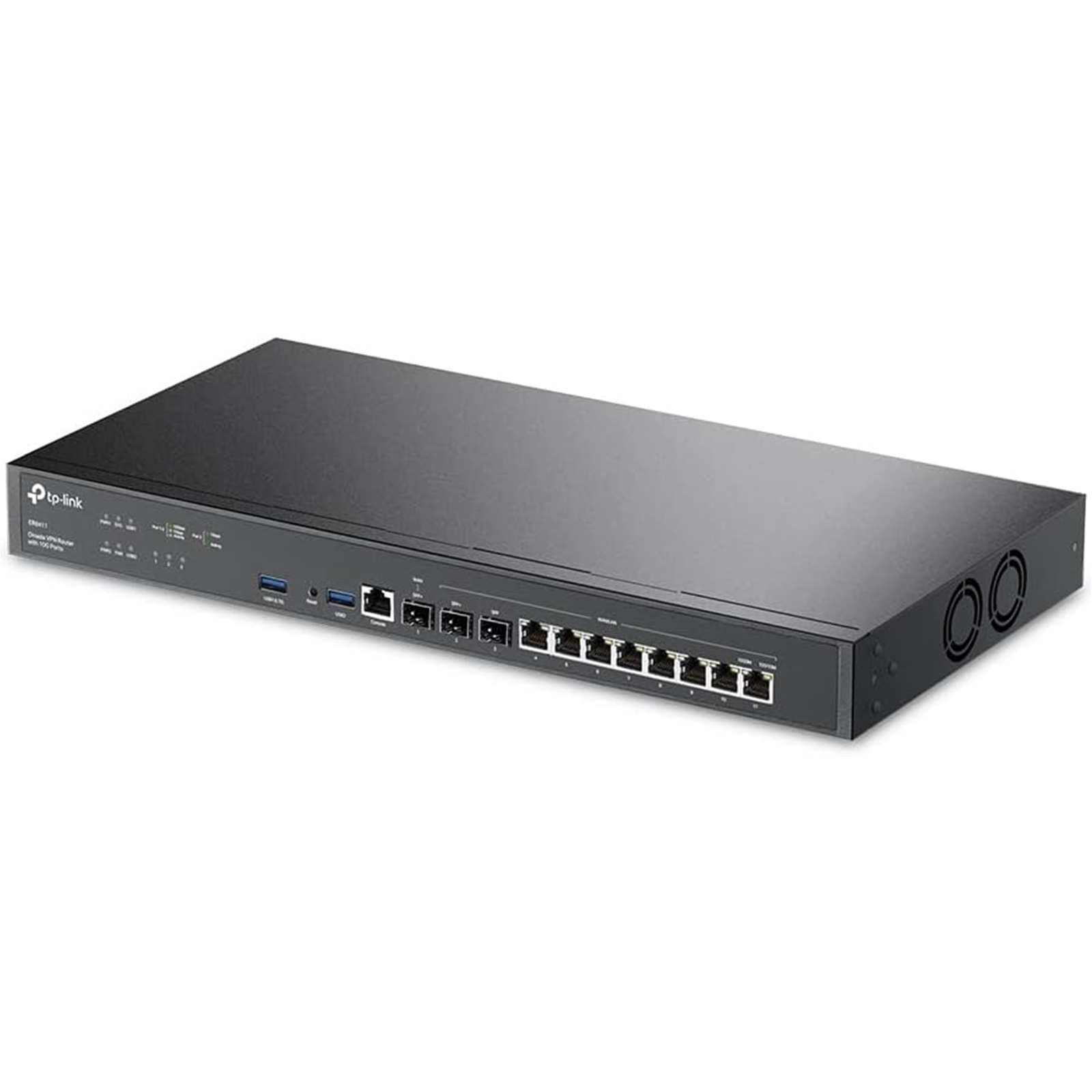

Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 — an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.
10x WAN Ports & One USB WAN for Mobile Broadband
Up to 10 WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, WireGuard, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Specifications
Access Control
Source/Destination IP Based Access Control
Filtering
WEB Group Filtering
URL Filtering
Web Security
ARP Inspection
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defence
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Standards and Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
Interface
2x 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
1x 1GE SFP WAN/LAN Ports
8x 1GE RJ45 WAN/LAN Ports
1x RJ45 Console Ports
2x USB Ports (Connecting 4G/3G Modem as WAN Backup)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100O STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100O STP (Max 100 m)
1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity
2
Button
Reset Button
Power Supply
Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
Flash
4MB SPI NOR + 256 MB NAND
DRAM
4 GB DDR4
LED
PWR, SYS, WAN, LAN, USB, FAN
Dimensions
17.3 x 8.7 x 1.7 in (440 x 220 x 44 mm)
Protection
4 kV surge protection
Enclosure
Steel
Mounting
Rack Mountable
Max Power Consumption
26.36 W (with USB 3.0 connected)
19.12 W (without USB 3.0 connected)
IPS Throughput
TCP: 4924 Mbps;
UDP: 4521 Mbps
DPI Throughput
TCP: 5524 Mbps;
UDP: 3547 Mbps
Wireguard VPN
1411 Mbps
Concurrent Session
2,300,000
New Sessions/Second
20,000
NAT (Static IP)
Upload: 9445.82 Mbps
Download: 9449.26 Mbps
NAT (DHCP)
Upload: 9426.83 Mbps
Download: 9426.20 Mbps
NAT (PPPOE)
Upload: 9413.96 Mbps
Download: 9102.01 Mbps
NAT (L2TP)
Upload: 9064.66 Mbps
Download: 8587.57 Mbps
NAT (PPTP)
Upload: 8712.11 Mbps
Download: 8505.61 Mbps
64 Byte Packet Forwarding Rate
Upload: 1080 Mbps
Download: 1030 Mbps
IPSec VPN Throughput
ESP-SHA1-AES256: 3099.4 Mbps
ESP-SHA256-AES256: 2928.4 Mbps
ESP-SHA384-AES256: 2935.7 Mbps
