Description

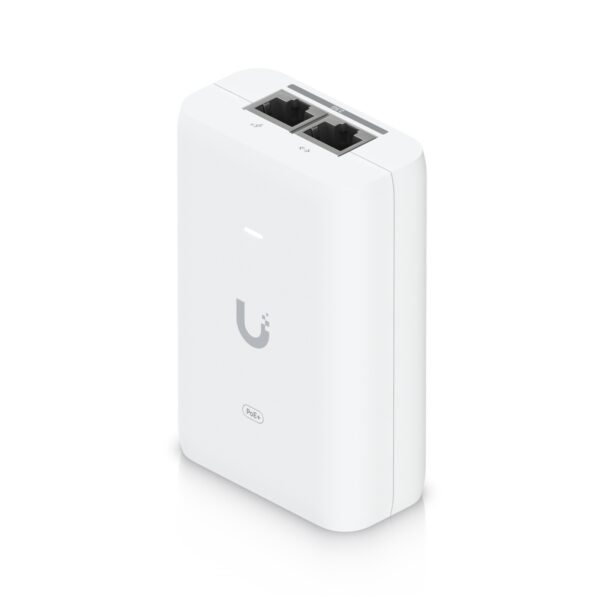

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4)
Weight
156 g (5.5 oz)
Output Voltage
48V DC @ 0.65A
LAN Activity Indicator
No
Gigabit LAN Port
Yes, up to 2.5 GbE
Remote Reset Capability
No
Reset Button
No
Rated Voltage
100—240V AC @ 50/60Hz
Input Current
0.75A max.
Inrush Current
<150A peak @ 230V AC
Efficiency
>87%
Output Ripple
1% max.
Switching Frequency
65 kHz max.
Line Regulation
< 1%
Load Regulation
< 3%
2-Pair Powering
Pins 4, 5 (+) and 7, 8 (-)
4-Pair Powering
No
Data In / POE
RJ45 shielded socket
Surge Protection
Difference and common mode
Clamping Protection
11V data, 60V power
Max. Surge Discharge
1500A power
Peak Pulse Current
36A data
Shunt Capacitance
<5 pF Data
Response Time
<1 ns
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
