Description

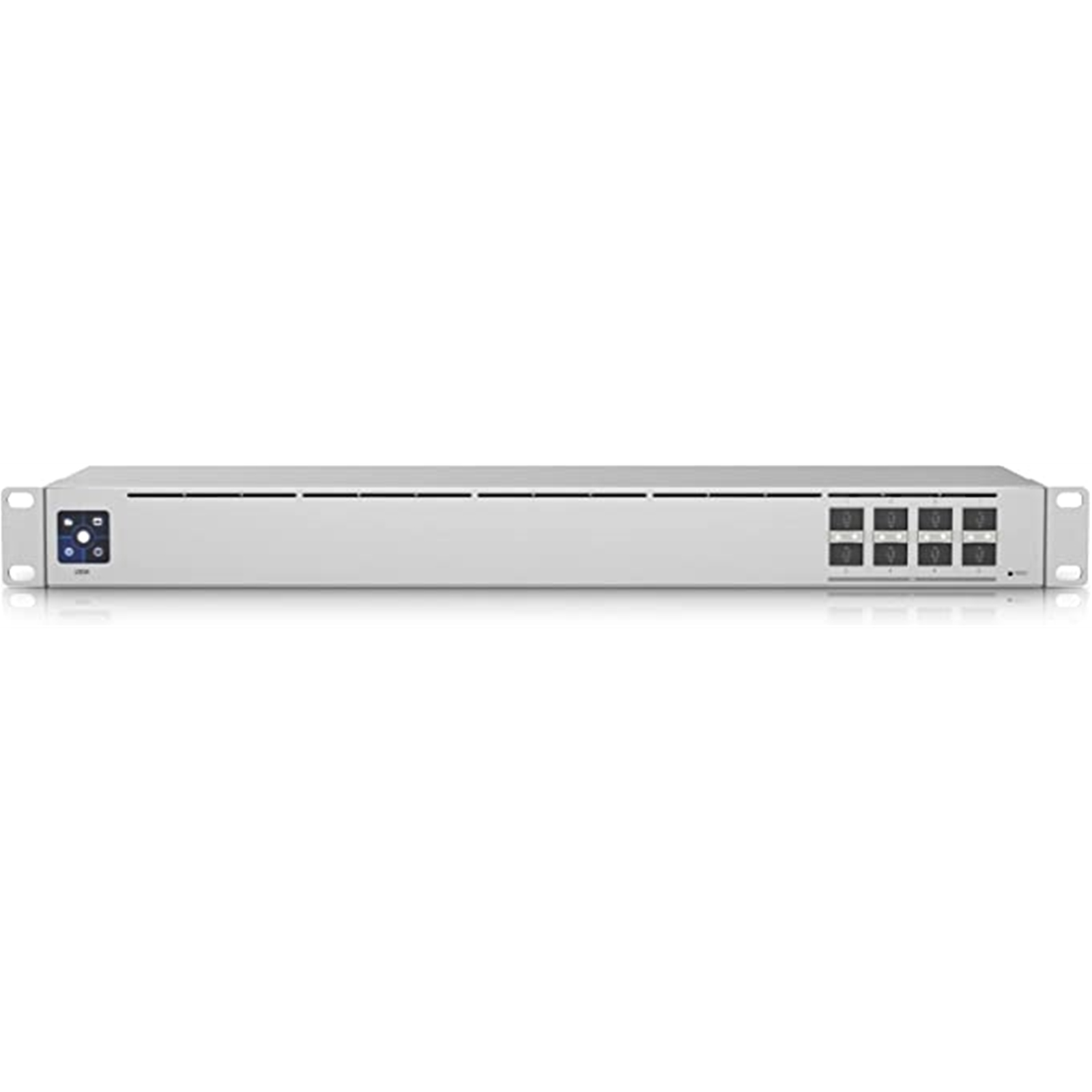

Ubiquiti UniFi Switch Aggregation (USW-Aggregation)
Layer 2 switch with (8) 10G SFP+ ports
The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3 LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7 depth, it’s easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful, intuitive
Hardware
Total Non-Blocking Throughput
80 Gbps
Switching Capacity
160 Gbps
Forwarding Rate
119.04 Mpps
Max Power Consumption
30W
Power Method
Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply
AC/DC, Internal, 36W
Management Interface
Ethernet In-Band
Modes
SMB Layer 2 Gigabit Ethernet Switch
Max. Number of Supported SFP+ Modules
UACC-OM-MM-10G – 8
UACC-OM-SM-10G – 8
UACC-CM-RJ45-10G – 4
ESD/EMP Protection
Air: ± 16kV, Contact: ± 12kV
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
LEDs
System
(1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
SFP+
White: 1/10G
Packaging
Weight
Without Mount: 2.65 kg (5.84 lb)
With Mount: 2.74 kg (6.04 lb)
Dimensions
442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72)
Enclosure Material
SGCC Steel
Warranty
1 Year
