Description

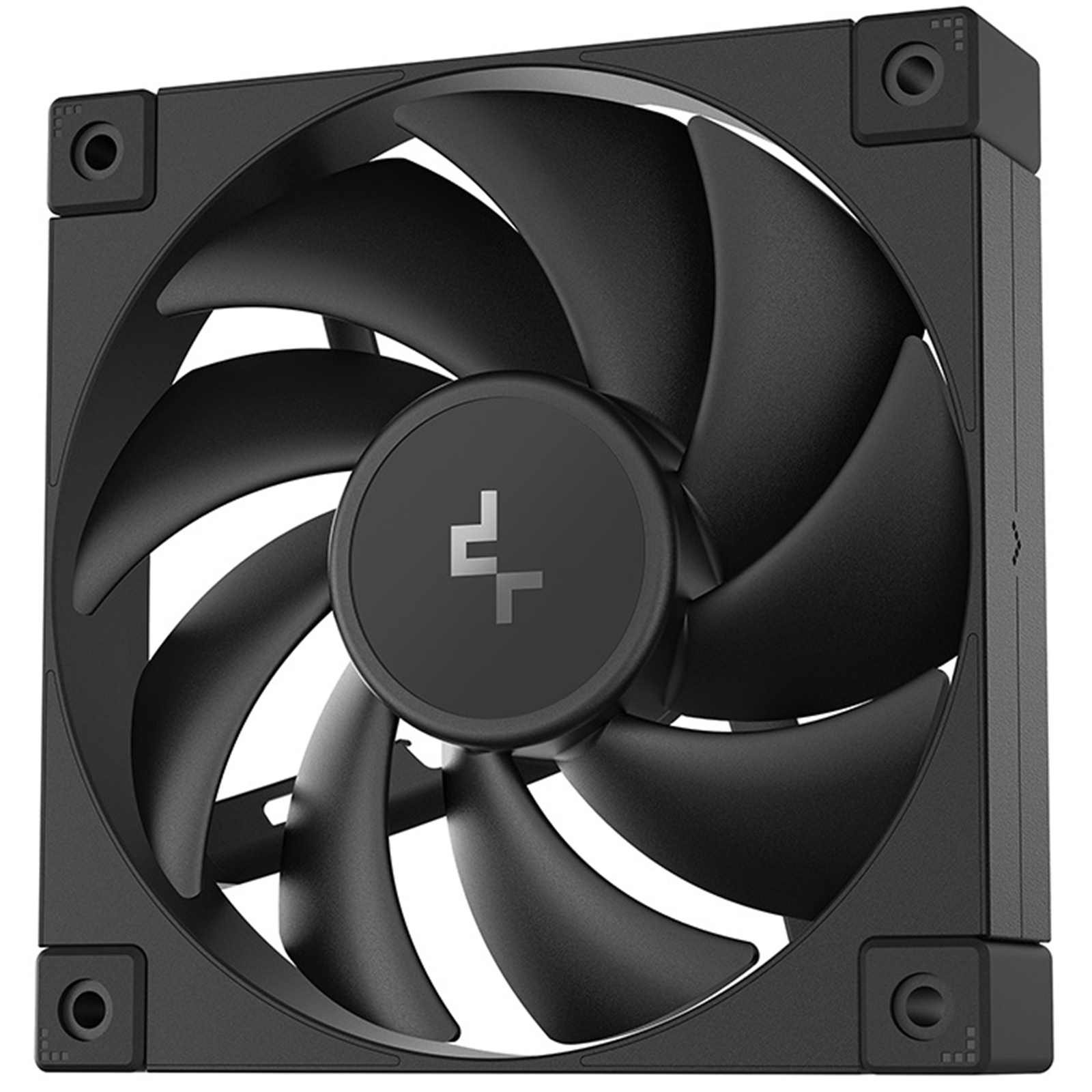

This 120mm PWM case fan is engineered to deliver strong airflow and static pressure for efficient system cooling. It features a high-performance 9-blade design that supports balanced thermal management while minimizing operational noise.
With a hydro bearing system and vibration-dampening rubber pads on each corner, the fan provides quiet and reliable operation over extended periods. The 8-pin daisy-chain connector simplifies cable management, making installation easier and cleaner for multi-fan setups.
Built with high-quality materials, this fan is a dependable choice for performance-focused users looking for cooling efficiency and ease of use.
Key Features:
High Airflow & Static Pressure: Designed to enhance both case ventilation and radiator performance
Low Noise Operation: Hydro bearing and rubber pads reduce sound and vibration
Daisy-Chain Support: 8-pin connector simplifies cable routing for multi-fan configurations
Durable Build: Made with robust frame and blade materials for long-term performance
Specifications:
Fan Dimensions:
120 × 120 × 25 mm
Performance:
Fan Speed: 400 – 2050 RPM ±10%
Airflow: Up to 64.2 CFM
Static Pressure: Up to 2.49 mmAq
Noise Level: =27.6 dB(A)
Electrical:
Rated Voltage: 12 VDC
Rated Current: 0.13 A
Power Consumption: 1.56 W
Connectors:
Fan Connector: 4-pin PWM
Daisy-Chain Connector: 8-pin proprietary
Bearing Type:
Hydro Bearing
Material:
Frame: PBT (Polybutylene Terephthalate)
Fan Blades: Polycarbonate
Mounting & Noise Control:
Rubber Dampening Pads: Yes, on all corners
Package Contents:
1 × 120mm PWM Case Fan
Mounting Screws
Installation Guide
Warranty:
3 Years
