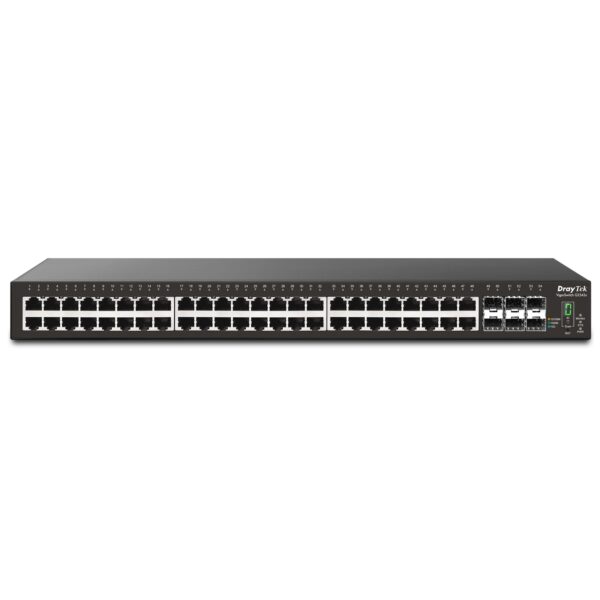

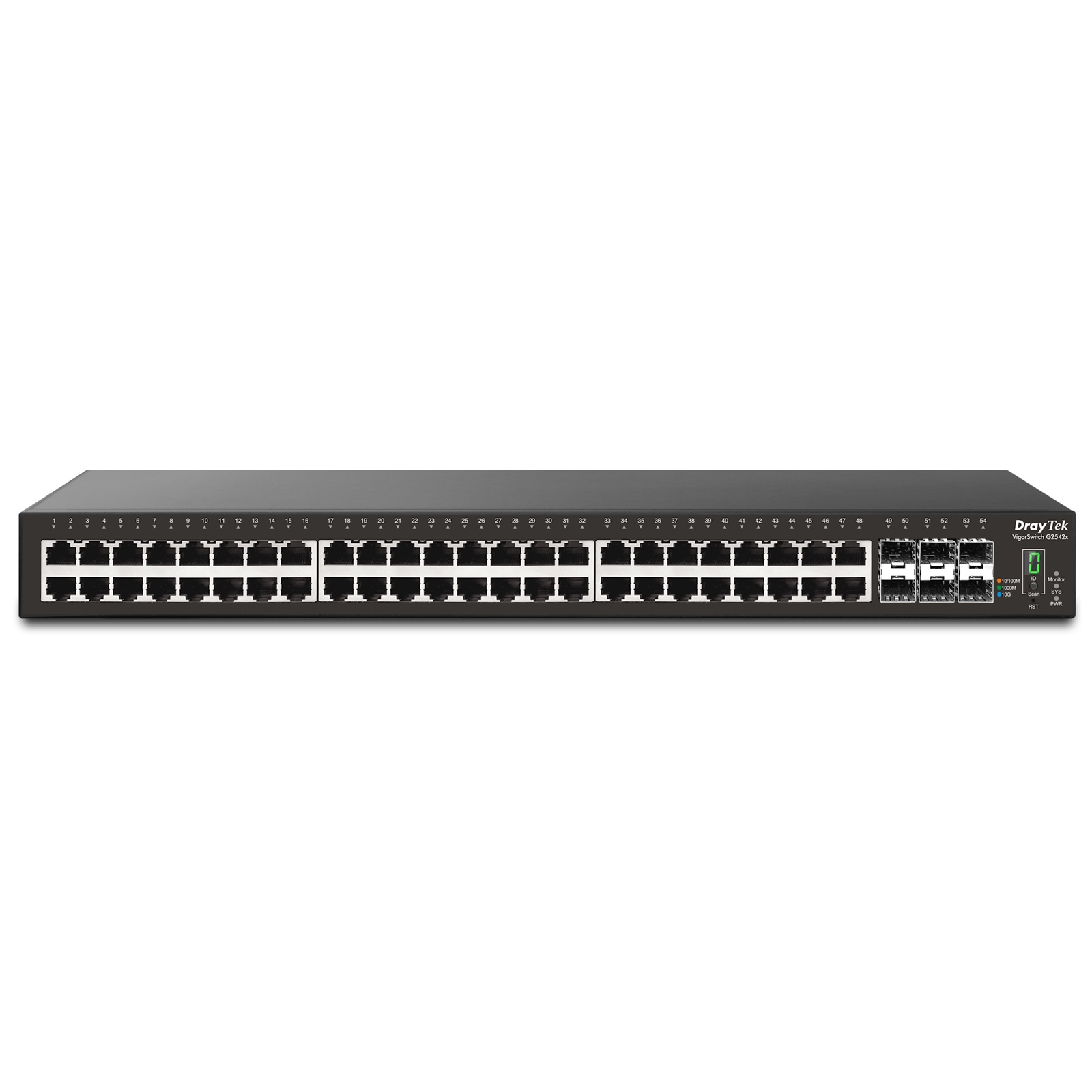

Draytek VSP2542X-K 54 Port switch with 48 PoE+ RJ-45 LAN ports, 6 10Gbpe SFP+, 400W PoE budget, and L2+ management, 2 Year Warranty

Description

DrayTek VigorSwitch P542x

Product Overview
VigorSwitch P2542x is a L2+ managed switch, with a plethora of management options and enterprise-level feature to improve network stability and security for businesses including stacking, and power backup input. It comes with 48 RJ-45 LAN ports, 6 10Gbps SFP+ slots, and Layer 3 capabilities, including DHCP server, static routes, and VLANs. The switch is also equipped with advanced management features, including ONVIF support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments. Our cutting-edge and versatile networking switch with power redundancy options allows seamless operation and minimised downtime and comes equipped with both DC and AC power options, to cater to your unique power requirements.

Key Features & Benefits

High Speed 10 Gigabit SFP+ Uplinks
6 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.
Benefits: Easily increase network throughput and meet demanding bandwidth requirements.

Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.
Benefits: Provides a fast and secure bridge between networks

Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor routers, or directly via the device’s Web Interface.

Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Auto Surveillance & Voice VLAN
Recognise business-critical traffic from IP cameras and IP phones automatically and use CoS tag for QoS prioritization.
Benefits: Improved scalability and network efficiency.

Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, IP Conflict Prevention, DHCP Snooping, IP Source Guard and Access Control List.
Benefits: Secure & control access to your network.

ONVIF IP Camera Surveillance Management
Make IP camera management easier with detection and management of ONVIF cameras. View a topology of all cameras connected. Use PoE Device Check and Camera Snapshot Email Alerts to rapidly detect & troubleshoot problems
Benefits: Easily configure, deploy & manage connected IP Cameras.

Key Specification
48 x RJ-45 Gigabit Ethernet Ports
6 x SFP+ 10GbE Ports for Uplink / Fibre
802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
VLAN Routing & Static Route with DHCP server / relay
Virtual Router Redundancy Protocol*
QoS for Application traffic prioritisation
802.1x RADIUS / TACACS+ Port Authentication with Accounting
Voice VLAN for QoS (OUI Mode)
Access Control List (ACL)
Port Mirroring & Link Aggregation
IGMP Snooping & Querying
IPv4 and IPv6 Support with IP Conflict Prevention
Hardware Monitor
Centrally managed or standalone operation
Console Port

Technical Specification (UK Hardware Spec.)

Physical Interfaces
48 RJ-45 Ethernet Ports – 10/100/1000Mbps
6 SFP+ Ports – 1000Mbps/10Gbps
Console Port (RJ-45 physical, RS-232 electrical)
Factory Reset Button
Stacking Scan Button – New!
AC Power Socket
DC Backup Power Input – New!

PoE Specification
48-ports 802.3af & 802.3at (High Power) PoE PSE
400 Watts Total Power Budget for PoE
Up to 30 watts per port
Auto Detection of Powered Device (PD) and Consumption
Levels
Per Port PoE Status LED Indicators
Alert LED for high PoE Usage
Port Power Consumption Monitoring via Web Interface & CLI
Circuit Protection to Prevent Power Interference between Ports
PoE PD Monitoring & Maintenance Features (per port)
– Scheduling
– PoE PD Priority
– Restart PoE PD if not responding to ping
– Restart PoE IP Camera if not providing camera output

VLAN
802.1q Tag-based VLAN
Port-based and MAC-based VLANs
QinQ (Basic)
GVRP – General VLAN Registration Protocol
Up to 256 VLANs (out of 4096 VLAN IDs)
802.1v Protocol-Based VLAN
Voice VLAN (OUI Mode)
Surveillance VLAN (OUI Mode)
Protocol VLAN
MAC-based VLAN
Management VLAN
Port Isolation

QoS
Support 8 priority queues
Port-Based rate control (Ingress & Egress)
Priority queue schedule (WRR or Strict Priority)
Rate Limit
Class of Service
– 802.1p CoS
– DSCP
– CoS-DSCP
– IP Precedence ToS

Netw
