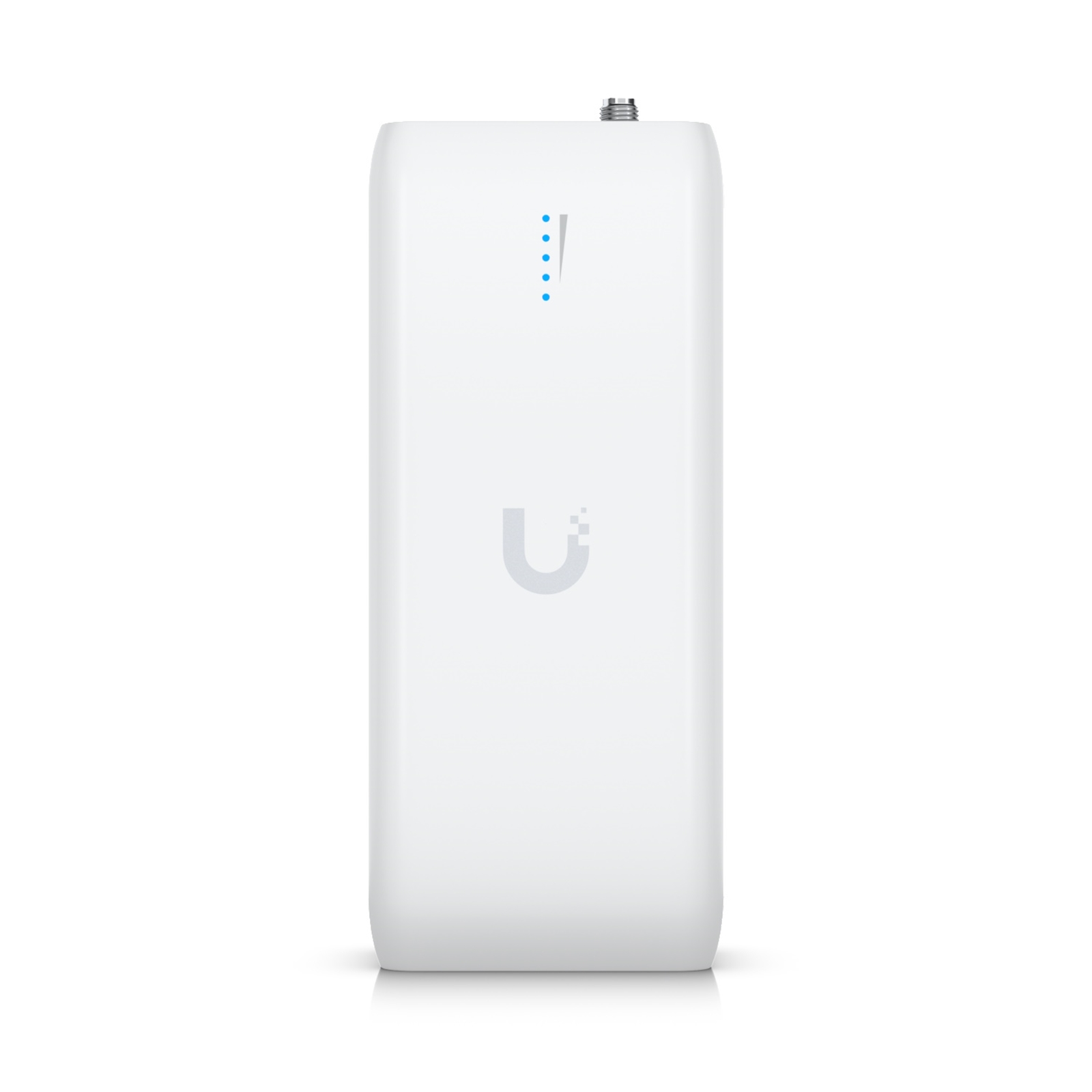

Ubiquiti UDB Plug and Play Wireless Device Bridge

Description

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.

Dimensions
130 x 55 x 34 mm
(5.1 x 2.2 x 1.3)

WiFi Standard
WiFi 5

Spatial Streams
2

Mounting Locations
Wall/Table

Power Method
100—240V AC, 0.45A Max., 50/60 Hz

MIMO
2 x 2

Max. Data Rate
866.7 Mbps (BW80)

Antenna Gain
Internal antenna: 5 dBi
External omni antenna: 4 dB

Max. TX Power
21 dBm

Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)

Wireless Security
WPA2 AES (Always On)

Max. Power Consumption
25W (AC input)
10W (Excluding PoE output)

Supported Voltage Range
100—240V AC

Supported Voltage Range
100—240V AC

Networking Interface
(1) GbE RJ45 port

Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna

Management
WiFi

Weight
200 g (7.1 oz)

Mount Material
Polycarbonate

Enclosure Material
Polycarbonate

Button
(1) Factory-reset

System LEDs
(4) Blue: signal
(1) White/blue: indicator

Channel Bandwidth
20/40/80 (MHz)

Certifications
CE, FCC, IC
